How to set up your customer paper sizes on Mac?

Created by Jiose Printer, Modified on Sun, 19 Jun, 2022 at 10:33 PM by Jiose Printer

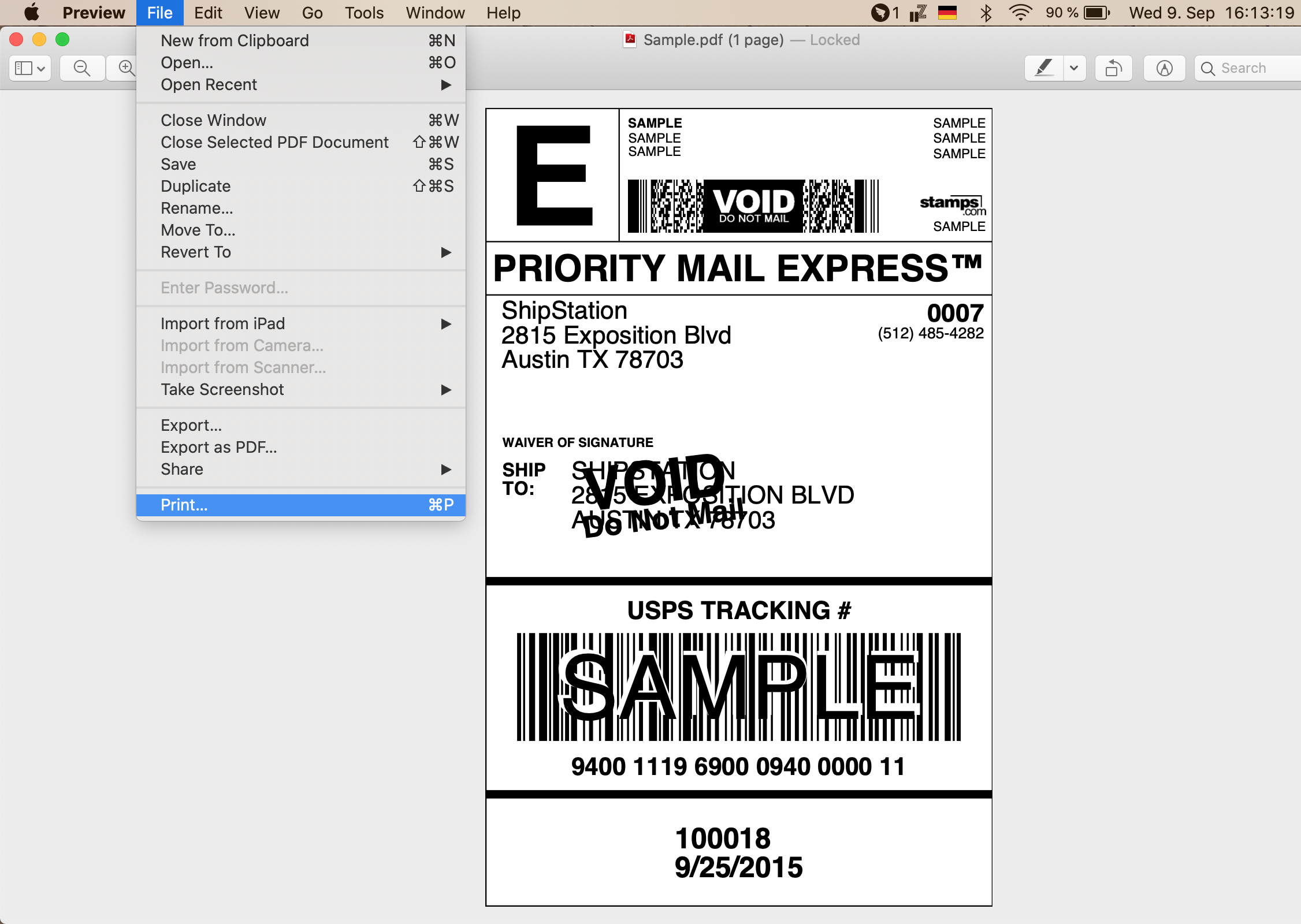

Open a label file, Select "File" -> "Print" >>>

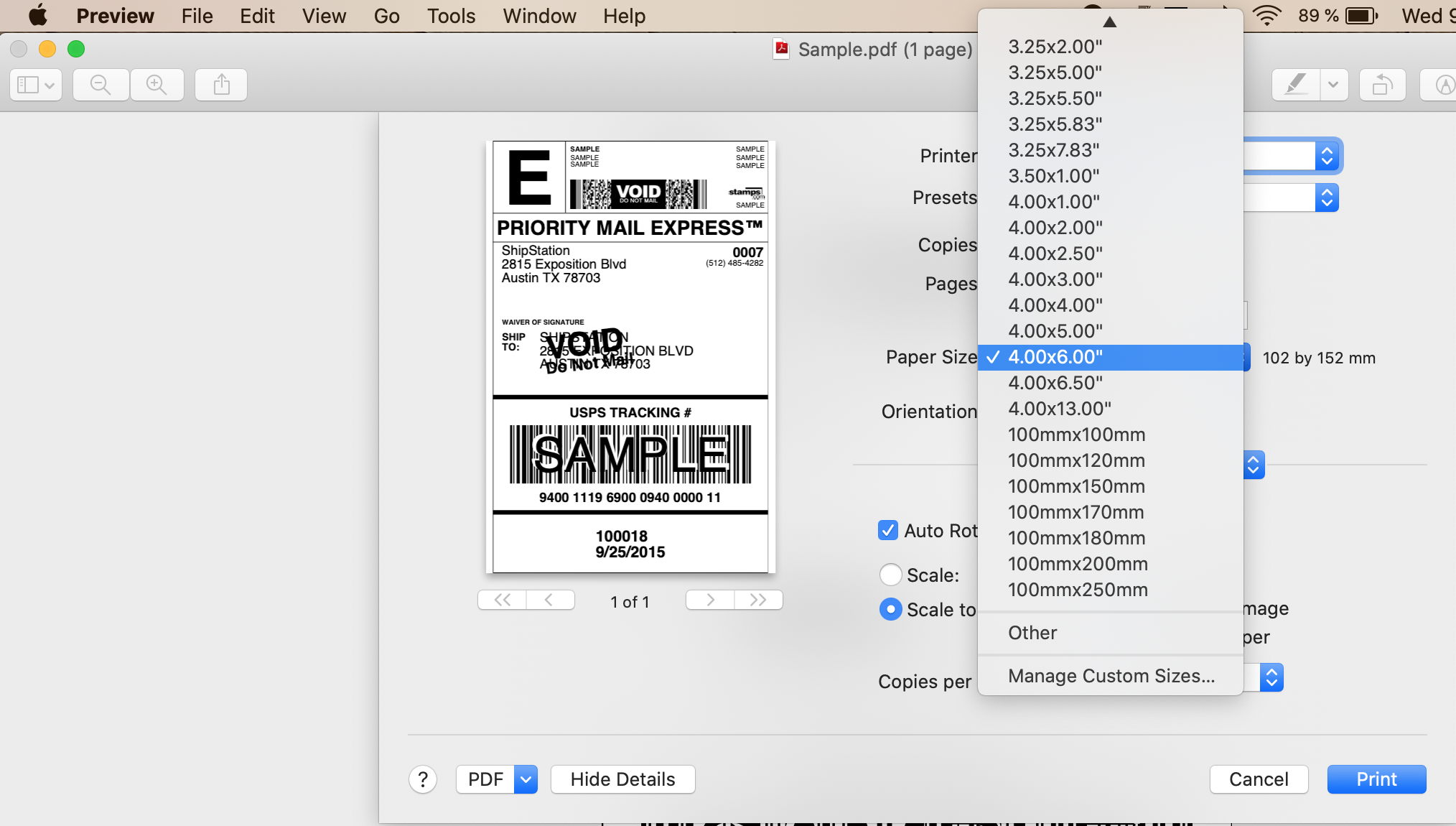

Please choose the paper size which you're used to printing >>>

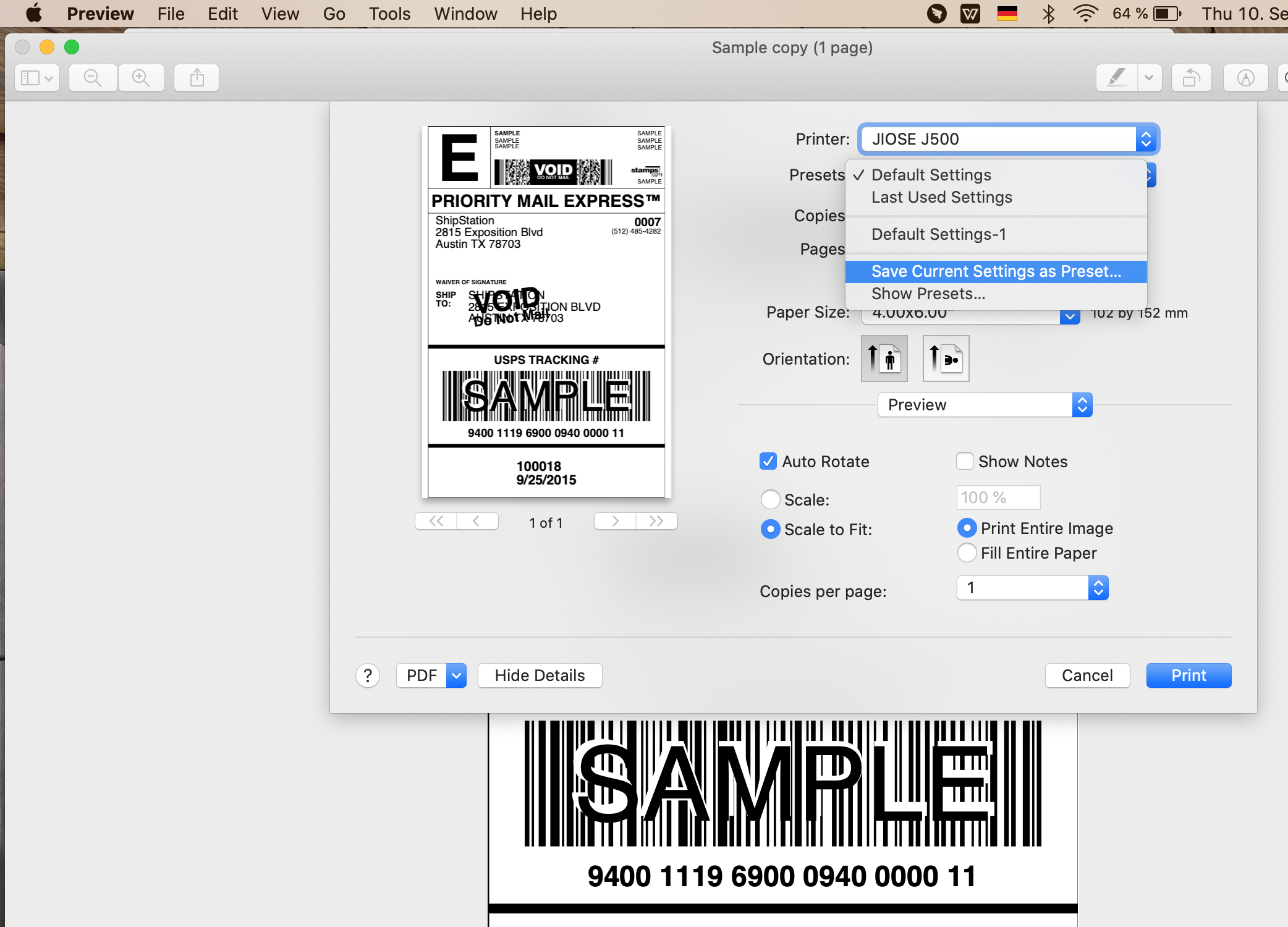

And, you could set the paper size as your default parameter by clicking "Save Current Settings as Preset..." under the "Presets" column >>>

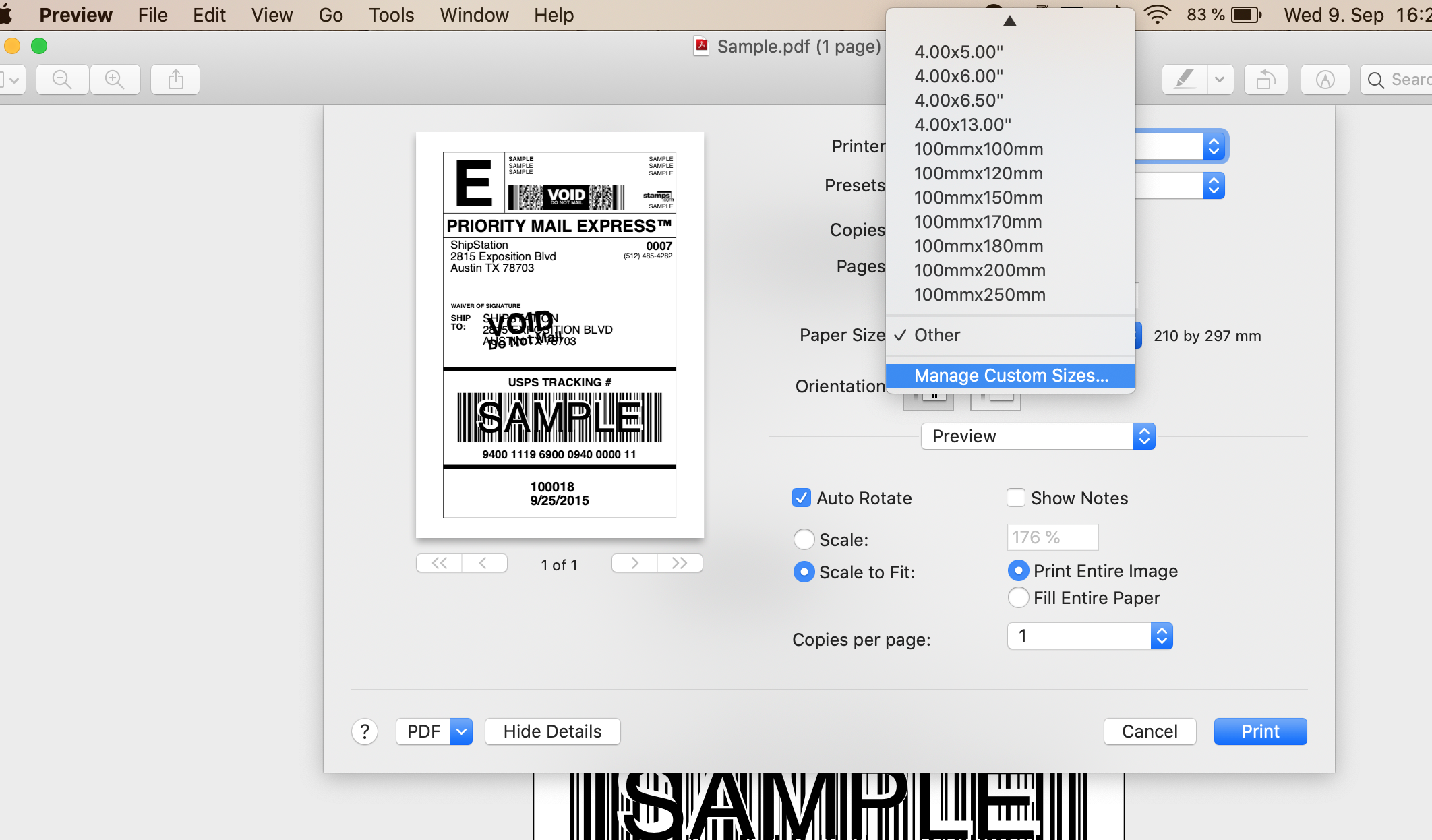

If there is no suitable paper size to print, you'll need to custom a paper size through "Manage Custom Sizes..." >>>

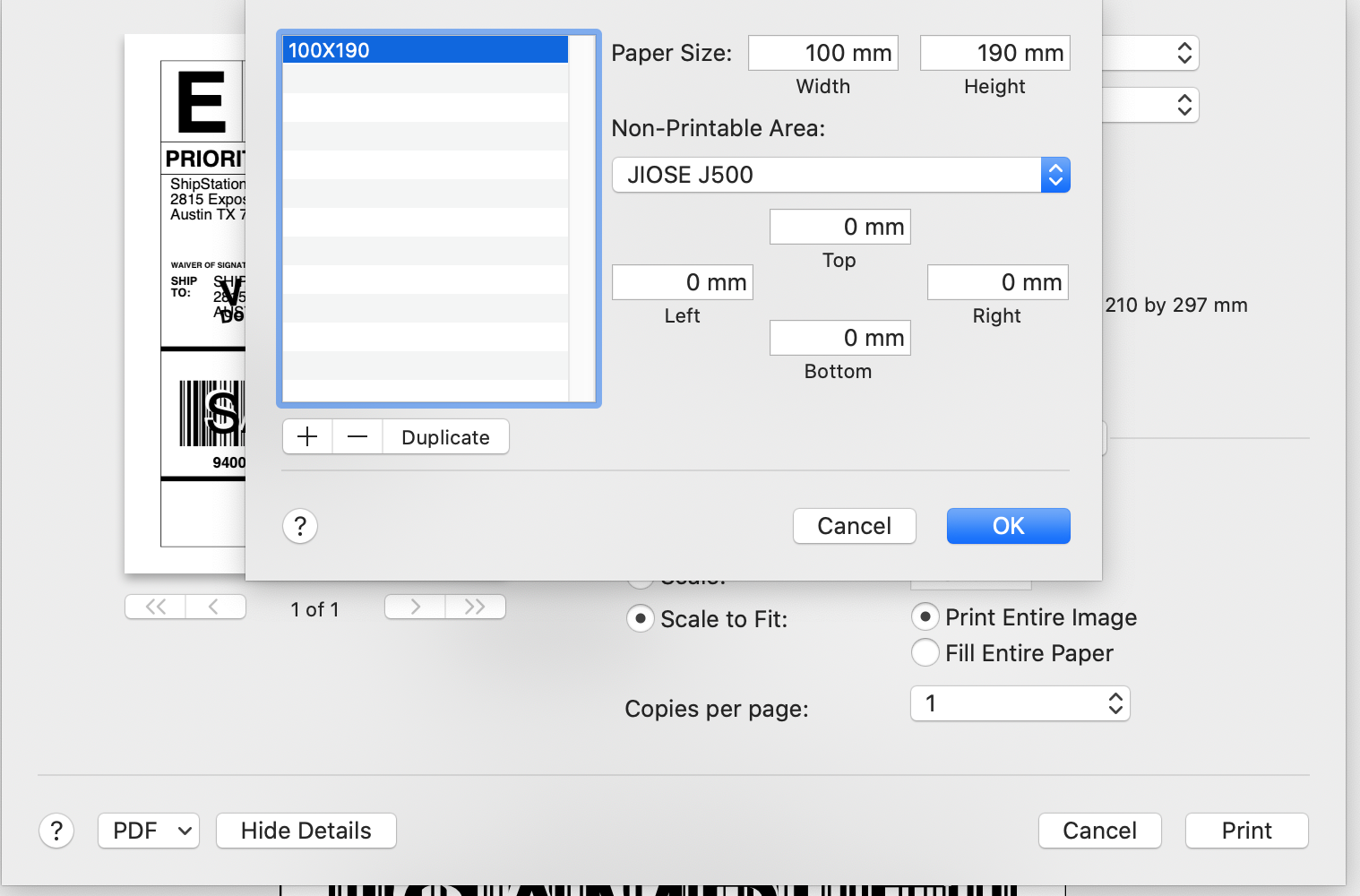

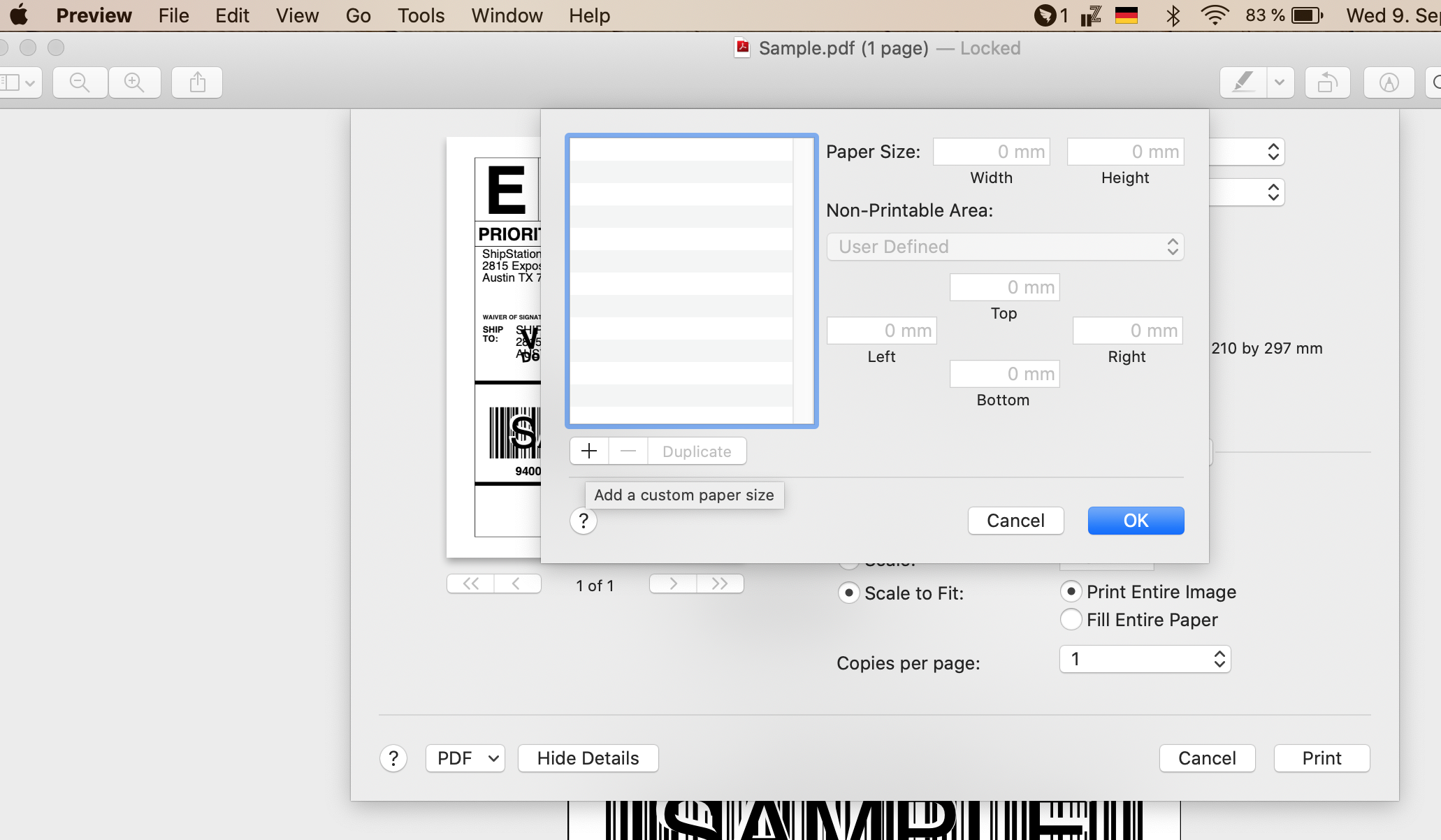

Click "+" and input the specific size in the "Width" and "Height" boxes >>> (please note it is mm size)


Note

The Printing Width (Label Size Width): Min. 40mm ~ Max. 108mm (1.57~ 4.25 inches);

The Printing Length (Label Size Height): Min. 30mm ~ Max. 300mm (1.18~11.8 inches)

And type a recognizable "Name" at left box, then, click "OK" to save >>>

Now, you can select the custom paper size to print >>>

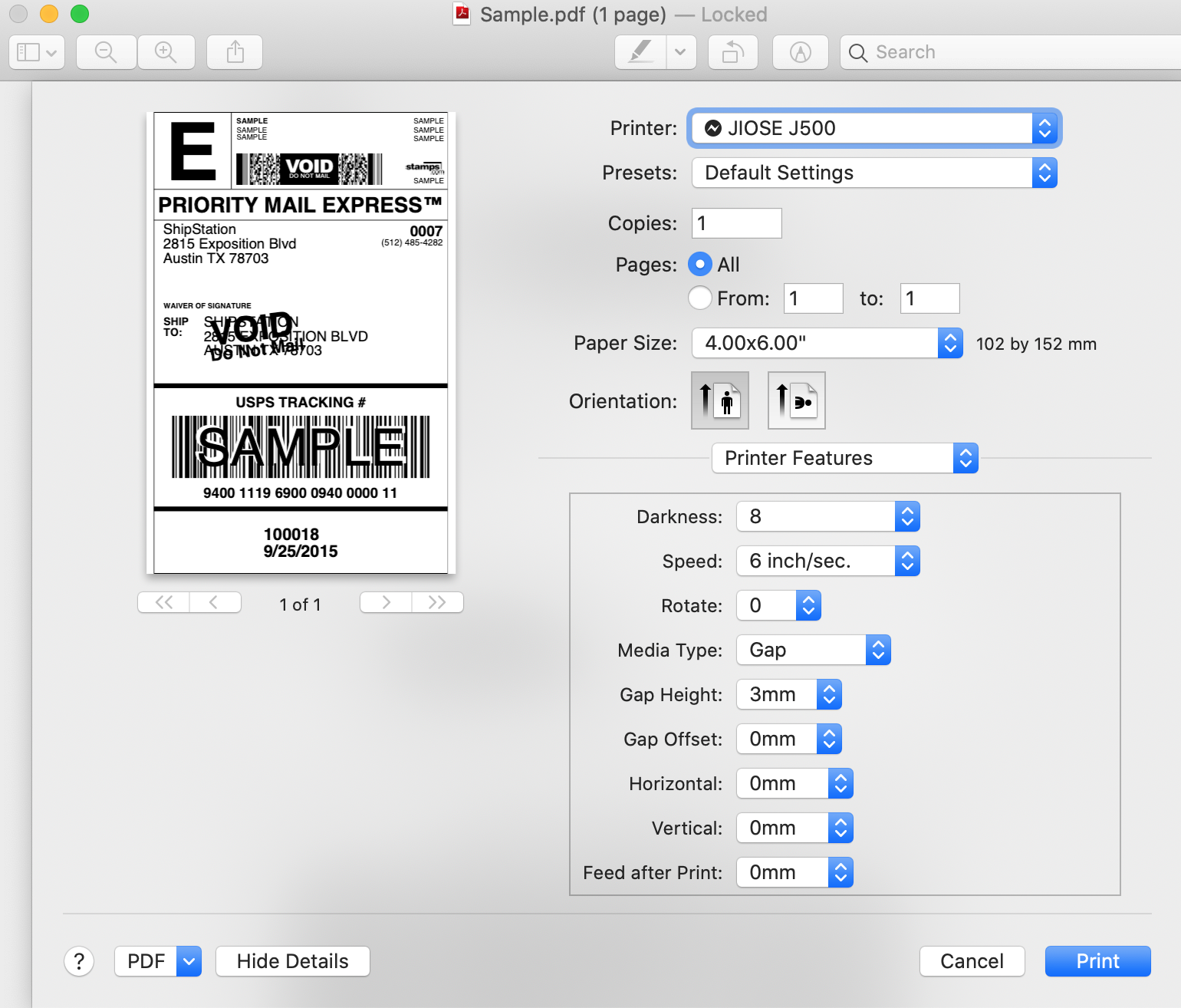

 In addition, you could also set the printing Speed, Darkness,... by selecting "Printer Features" >>>


Note

Increasing the number of Speed will influence the printing effect, and increasing the number of Darkness will get darker print. But the high darkness may lead to unwanted dark lines or make the label getting too hot and sticking to the printer head.


NOTICE: It's necessary to select the corresponding paper size before clicking "Print" every time you

start to print, unless the pdf label you wanted to print is match with your default paper size.


Note

Every time you change the label size, please run the

"Intelligent Label Study" on machine before printing.

And how to run the Intelligent Label Study on machine ?

Please turn to the page 6th, 7th of the Jiose J500 USER GUIDE to learn how to run it.

OK, the machine is ready to print since you have selected the corresponding paper size and also have run the

Intelligent Label Study


Just click the "Print" on the pdf file to start J500 printing journey!
